Grand Design Momentum G Class Toy Hauler

Hidden Space

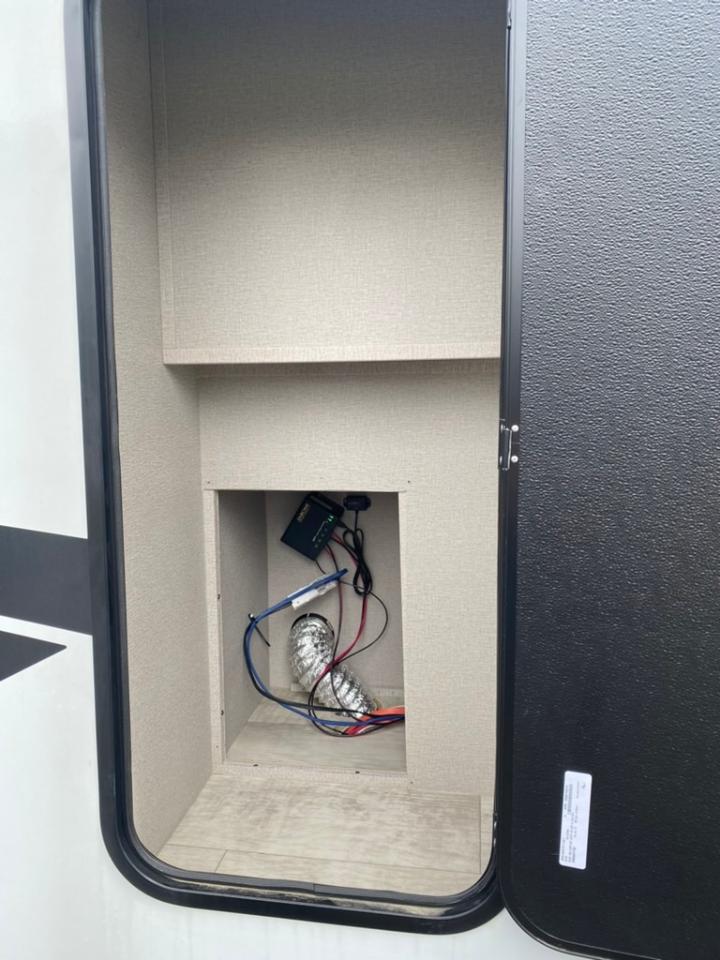

One item we pride ourselves on in particular is using existing spaces overlooked by the RV manufacturer to keep your storage space at a maximum. See below how we use an existing space and reworked it to actually provide more space than they had before by removing false walls.space.

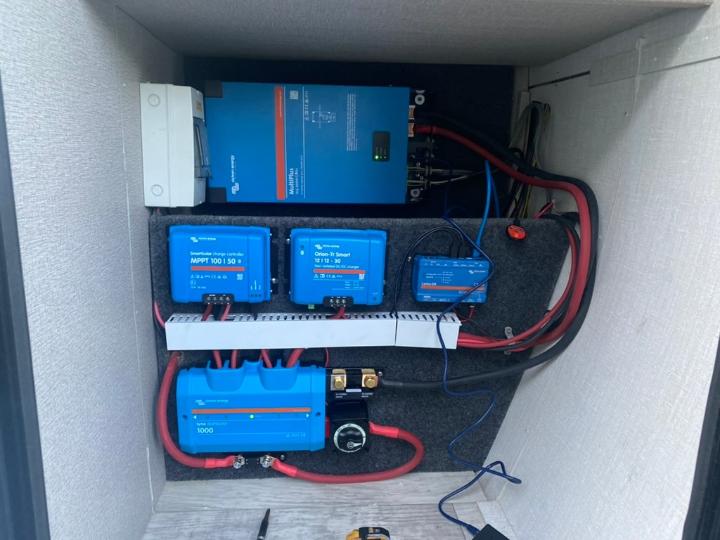

Final Installation

A smaller 30 amp RV like this doesn't need a full 3000va Multiplus inverter, for this install we chose the 2000va version to save space and money.

Tucked behind the backer board there is a 560ah custom lithium battery. We make these on request to mostly save space, but they also are the best value in lithium batteries.

Included in this install is a 100|50 solar charger along with a 30 amp Orion DC DC charger to keep the batteries healthy but also alternator in the tow vehicle.

Rv Solar

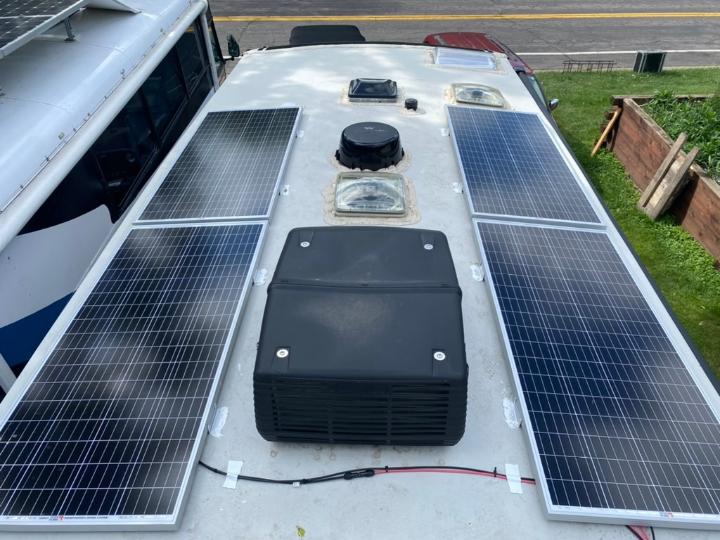

Rounding out this RV Solar Installation is 800w from 4x Rich Solar 200w panels. This replaced the existing panel and used the solar prewire port and wires to save on some install time.

Some sharp eyed viewers might notice we have 800w of solar going into a 50 amp charge controller typically capable of only 600w of solar. We often will overpanel our solar controllers because it's rare to actually get full rated capacity of the controller otherwise. For a few weeks during the peak sun of summer there might be some clipping in the charge curve, however for only the cost of an additional panel they get more solar than they would otherwise the rest of the year. We find this particular configuration works very well.

2s2p using 24v panels will give a voltage around 70-80v PV keeps max amps down around 10 which is very safe and efficient.
